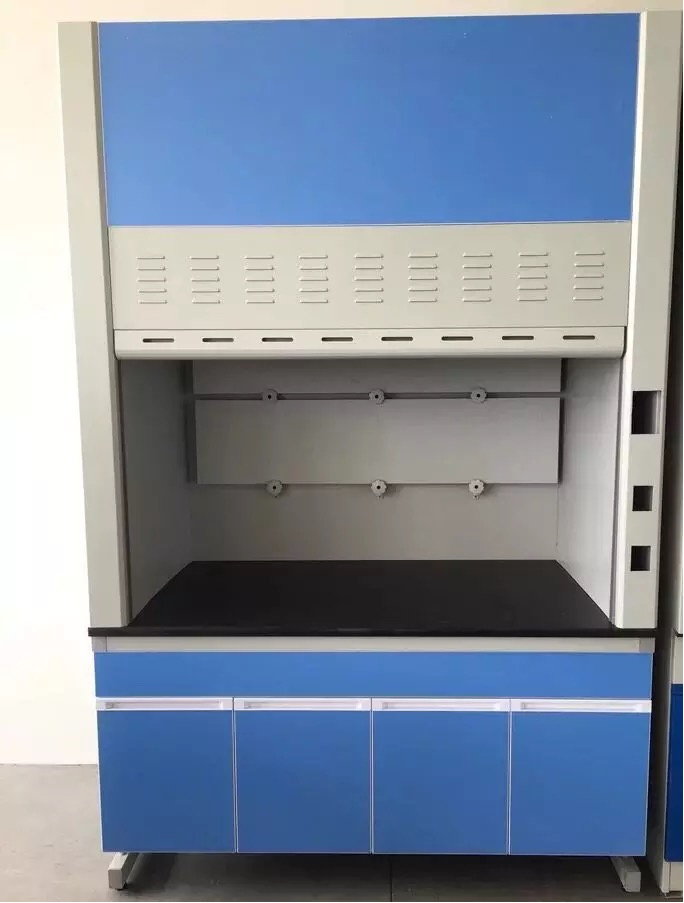

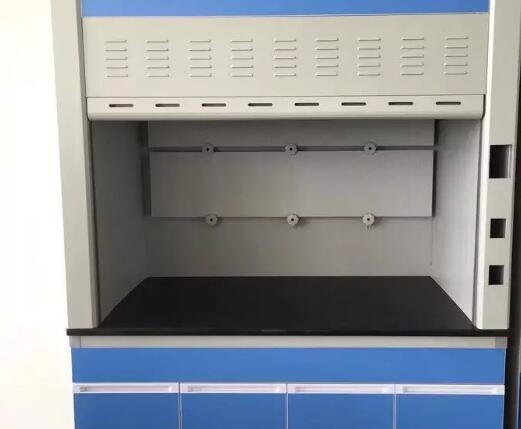

Fume cupboard
1, countertop: 12.7mm thick solid core physical board, edge thickening to 25.4mm thick; corrosion resistance strong acid and alkali, high temperature resistance, water immersion resistance, scratch resistance, impact resistance, antibacterial.
2、Cabinet body: the entire cabinet, drawers, doors, etc. using 16mm melamine board, double-sided overlay B1 fire board (fire board), fully highlighting the environmental performance, to ensure the safety of personnel and the reliability of the test results. All shelves with a span of more than 80cm are equipped with reinforcing bars to ensure that they will not be deformed after a long time of use.
3, the main steel frame: the use of high-quality 40 * 60 square steel, tube wall thickness of 1.0mm net cold-rolled steel, the connection is connected by a special connector. Surface by pickling, phosphating, epoxy resin plastic powder high temperature curing treatment, chemical rust treatment, acid and alkali corrosion resistance, good load-bearing performance, load ≥ 250kg / square meters without deformation.
4, hinges: DTC material selection of anticorrosive steel profiles, excellent elasticity, no noise, durable, switch use 100,000 times without failure, the maximum angle of up to 110 degrees.
5、Slide: DTC material is anticorrosive steel profiles, strong load-bearing capacity, durable, no noise, environmental protection.
6, Edge: All melamine plate cross-section are 2.0mm thick PVC edge by Sino-German joint venture “glue king” hot melt adhesive automatic gluing and sealing. It has excellent performance in anti-detachment, waterproof and environmental protection.
7, Handle: C-type gray PP concealed handles, one-piece molding, beautiful and generous, durable, anticorrosive and anti-fouling, never change color.
8、Metal adjustable feet: with load-bearing nuts and shock-absorbing rubber pads. Maximum adjustable height ≥ 5CM, to ensure the flatness of the laboratory bench.
9, liner, deflector plate: 6mm thick anti-belts board, acid and alkali and organic solvents, fire retardant, easy to clean. When fixing the liner and deflector plate, special anticorrosive materials are used to connect them.
10、Lifting door: aluminum profile combination frame, window with 6MM thick tempered explosion-proof glass, stepless balanced lifting, can stay in any position, designed to prevent gas spillage of the airflow grille, to prevent gas spillage. Operation door opening height: 0～750mm; window door for the window slide design, can be freely opened and stopped at any height, conducive to help adjust the wind speed. Exhaust volume: 1.5M fume cupboard in 1500m³/hour; fume cupboard meets the safety standards, during normal operation, the open state can ensure that its surface wind speed ≥ 0.5 m/s, the infusion design is scientific and reasonable, can ensure that the fumes inside the cupboard will be pumped out thoroughly and smoothly under the wind speed of 0.5-0.8m/s, no dead corner, no exhaust gas residue.
11, fluorescent lamps: 30W fluorescent lamp group, illuminance is not less than 300Lux; voltage: 220V.
12, socket: the material requirements of fire-resistant and high-temperature resistant PC material, waterproof 118-type socket is located on the right side of the fume cupboard; power failure protection device: the material is fire-resistant and high-temperature resistant PC material.
13, water supply pipe: PPR material, connection fasteners for special materials.
14、Drainage pipe: PVC standard pipe, pipe diameter ¢ 50mm, equipped with PP material return bucket.
15, Function: with intelligent automatic time-delay protection device, can completely evacuate the residual corrosive gas to protect the service life of the equipment.
16、Noise: noise ≤ 60dB.
17、Switch: using touch switch.
18, Duct: the use of laboratory ventilation special piping。
