Steel & wood central Station
Model：
L*1500*800mm
E-mail:
Key words:

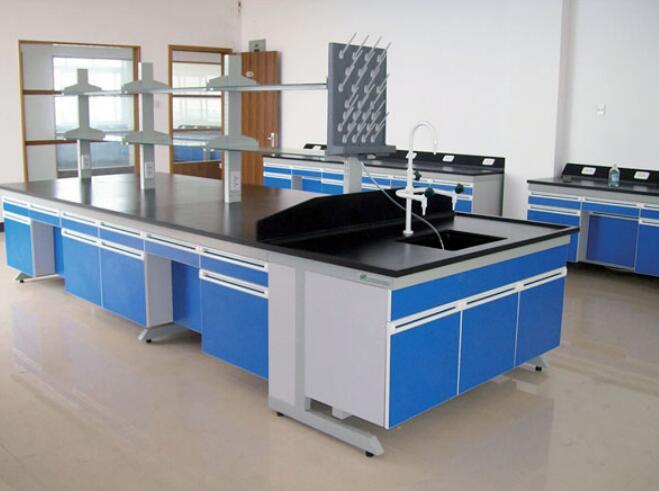

Steel & wood central Station
1. Countertop: Made of 12.7mm thick solid chemical-resistant board, with edges reinforced to 25.4mm thickness; corrosion-resistant, resistant to strong acids and alkalis, heat-resistant, water-resistant, scratch-resistant, impact-resistant, and antibacterial.
2. Cabinet body: The entire cabinet body, drawers, and cabinet doors are made of 16mm melamine-faced particleboard, with both sides covered in B1-grade fire-resistant panels (fireproof panels), highlighting environmental performance and ensuring personnel safety and the reliability of test results. All shelves with spans exceeding 80cm are reinforced with additional support beams to prevent deformation over extended use.
3. Main Steel Frame: Constructed from high-quality 40x60 square steel tubing with a wall thickness of 1.0mm cold-rolled steel. Connections are secured using specialized connectors. The surface undergoes acid washing, phosphating, and high-temperature curing with epoxy resin powder coating, along with chemical rust prevention treatment. It is resistant to acid and alkali corrosion, offers excellent load-bearing performance, and remains deformation-free even under loads exceeding 250kg/㎡.
4. Hinges: Made from DTC-grade corrosion-resistant steel profiles, these hinges offer excellent elasticity, operate silently, and are highly durable. They can withstand over 100,000 opening/closing cycles without failure, with a maximum opening angle of 110 degrees.
5. Sliding tracks: Made from DTC-grade corrosion-resistant steel profiles, these tracks offer strong load-bearing capacity, durability, and noise-free operation, while being environmentally friendly.
6. Edge banding: All melamine panels feature 2.0mm-thick PVC edge banding, automatically bonded using hot-melt adhesive from the Sino-German joint venture “Glue King.” This ensures no peeling, excellent waterproofing, and superior environmental performance.
7. Handles: C-shaped gray PP recessed handles are used, which are one-piece molded, aesthetically pleasing, durable, corrosion-resistant, stain-resistant, and maintain their color over time.
8. Metal adjustable feet: Equipped with load-bearing nuts and shock-absorbing rubber pads. The maximum adjustable height is ≥5 cm, ensuring the flatness of the laboratory bench.
